Real-time Sudoku Solver


Although solving printed sudoku puzzle via a vision-based application by itself is not a valuable thing and may be seen as an easy problem, you will gain a lot of knowledge through solving this problem and it could take a time to produce a robust solution. In this post, I will explain how to solve a printed sudoku solver using a real-time feed from a camera, such that If the captured image contains a sudoku puzzle, the puzzle will be solved and the result will be printed on the clear cells.


  1. Java Development Kit (JDK), you can get it from here.
  2. Netbeans or any Java IDEs, you can get it from here.
  3. Deeplearning4j, Open-Source, Distributed, Deep Learning Library for the JVM
  4. Javacv, Java wrapper to Opencv, FFmpeg, and many more.
  5. Source Code, you can get it from
  6. If you don't know how to run a maven project with netbeans, see this video
  7. Webcam, I used ELP Sony IMX322 Sensor Mini Usb Camera.

An overview of the system

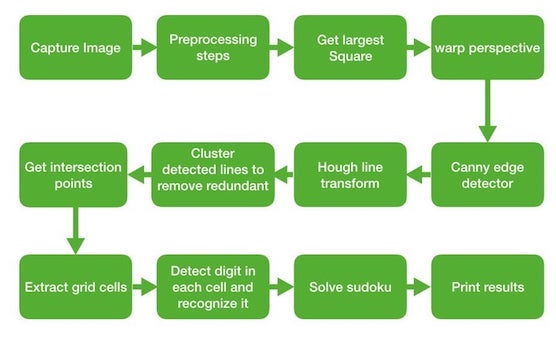

Figure 1 shows the major steps of the algorithm. As shown in the figure, captured image passes through some preprocessing steps described in figure 2 and then the sudoku grid will be localized assuming that it is the largest rectangle in the image, then hough line transform is applied to localize vertical and horizontal lines which form the sudoku grid, then K-means clustering algorithm is applied to group the lines to 10 vertical lines and 10 horizontal lines, then the intersection points between these lines are computed, from these points, cells of the grid are localized. After that for each cell, we extract the largest blob constrained by a threshold, assuming that the largest blob is the digit. These digits are recognized by a convolution neural network. Finally, we form a matrix of sudoku puzzle and feed it to a sudoku solving algorithm.

Figure 1: Major Steps of The Algorithm

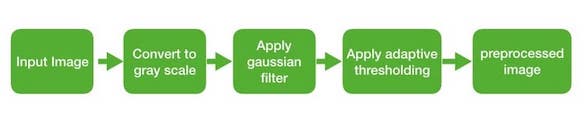

Figure 2: Preprocessing Operations

Code explanation

The project contains five classes, they are listed in the next table with their function.

Class Name Its Function
SudokuSolver Main class of the project
NetworkTrainer Train the model using the dataset (Mnist + Generated)
Sudoku Solve the sudoku puzzle, it returns the solution, given an array of the sudoku.
GenerateDataset Generate printed (not handwritten) digit dataset using Operating System fonts.
LineComparator Helper class to compare and sort lines.

I tried to add comments to the uploaded code in the Github to make it clear to anyone reads it. However, In the next points, I will briefly document the main class and provide screenshots for every result after any step. If you have any question, just leave it the comments.

  1. Load pre-trained model.
  2. The model used in this project is based on Lenet CNN architecture for handwritten digit recognition, you can see the model class from I tried to recognize sudoku digits with Mnist dataset but It gave me bad results, so I combined mnist dataset with a dataset I generated using different fonts included in OS (Mac, Windows, or Linux), you can generate this printed digit dataset with class Complete dataset (mnist with the generated one) is included in the project repository Here.

    private static MultiLayerNetwork loadNetwork() {
    	MultiLayerNetwork network = null;
    	try {
    	    String pathtoexe = System.getProperty("user.dir");
    	    File net = new File(pathtoexe, "");
    	    network = ModelSerializer.restoreMultiLayerNetwork(net);
    	} catch (IOException ex) {
    	    log.error("Error While Loading Pretrained Network: " + ex.getMessage());
    	return network;

  3. Capture image.
  4. I put the capture object in a AtomicReference in order to be able to stop and start cam streaming in a thread-safe way.

    final AtomicReference capture = new AtomicReference<>(new VideoCapture());
    capture.get().set(CV_CAP_PROP_FRAME_WIDTH, 1280);
    capture.get().set(CV_CAP_PROP_FRAME_HEIGHT, 720);
    if (!capture.get().open(0)) {
        log.error("Can not open the cam !!!");
    while (true) {
     while (start.get() && capture.get().read(colorimg)) {
        if (mainframe.isVisible()) {

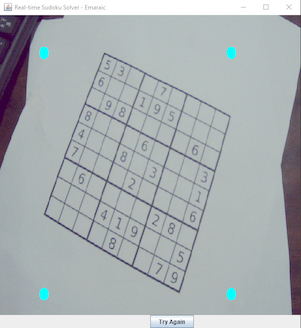

    Input Image.

  5. Apply pre-processing steps.
  6. These steps include converting to grayscale, applying gaussian filter, and binarizing image via adaptive thresholding.

    /*Convert to grayscale mode*/
    Mat sourceGrey = new Mat(colorimg.size(), CV_8UC1);
    cvtColor(colorimg, sourceGrey, COLOR_BGR2GRAY);
    //imwrite("gray.jpg", new Mat(image)); // Save gray version of image
    /*Apply Gaussian Filter*/
    Mat blurimg = new Mat(colorimg.size(), CV_8UC1);
    GaussianBlur(sourceGrey, blurimg, new Size(5, 5), 0);
    //imwrite("blur.jpg", binimg);
    /*Binarising Image*/
    Mat binimg = new Mat(colorimg.size());
    adaptiveThreshold(blurimg, binimg, 255, ADAPTIVE_THRESH_GAUSSIAN_C, THRESH_BINARY_INV, 19, 3);
    //imwrite("binarise.jpg", binimg);

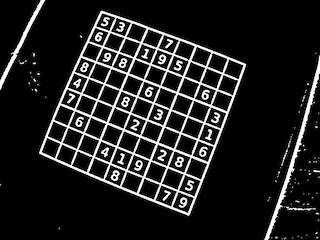

    Preprocessed Image.

  7. Extract The largest Blob.
  8. In his step, we extract the largest Blob (Rectangle) assuming that it is the sudoku grid puzzle.

    private static Rect getLargestRect(Mat img) {
    	MatVector countours = new MatVector();
    	List rects = new ArrayList<>();
    	List araes = new ArrayList<>();
    	findContours(img, countours, CV_RETR_TREE, CV_CHAIN_APPROX_SIMPLE, new Point(0, 0));
    	for (int i = 0; i < countours.size(); i++) {
    	    Mat c = countours.get(i);
    	    double area = contourArea(c);
    	    Rect boundingRect = boundingRect(c);
    	if (araes.isEmpty() || Collections.max(araes) < 4000) {
    	    return new Rect(0, 0, img.cols(), img.rows());
    	} else {
    	    Double d = Collections.max(araes);
    	    return rects.get(araes.indexOf(d));
    Largest rectangle (Rotated) contains sudoku puzzle.

  9. Warp perspective and correct skew angle.
  10. This step includes deskewing extracted rectangle by computing the rotation angle of the rectangle and correcting it, this is done inside the deskewImage method, and then apply warp perspective using the four corners of the rectangle.

     private static Mat warpPrespectivePuzzle(Mat image) {
            image = deskewImage(image);
            Rect rect = getLargestRect(image);
            Point2f srcPts = new Point2f(4);
            srcPts.position(0).x((float) rect.x()).y((float) rect.y());
            srcPts.position(1).x((float) rect.x() + rect.width()).y((float) rect.y());
            srcPts.position(2).x((float) rect.x() + rect.width()).y((float) rect.y() + rect.height());
            srcPts.position(3).x((float) rect.x()).y((float) rect.y() + rect.height());
            Point2f dstPts = new Point2f(4);
            dstPts.position(1).x(600 - 2).y(0);
            dstPts.position(2).x(600 - 2).y(600 - 2);
            dstPts.position(3).x(0).y(600 - 2);
            Mat p = getPerspectiveTransform(srcPts.position(0), dstPts.position(0));
            Mat img = new Mat(new Size(600, 600), image.type());//image.size()
            warpPerspective(image, img, p, img.size());
            return img;
    private static Mat deskewImage(Mat img) {
            MatVector countours = new MatVector();
            List araes = new ArrayList<>();
            findContours(img, countours, CV_RETR_TREE, CV_CHAIN_APPROX_SIMPLE, new Point(0, 0));
            for (int i = 0; i < countours.size(); i++) {
                Mat c = countours.get(i);
                double area = contourArea(c);
            if (araes.isEmpty()) {
                return img;
            } else {
                Double d = Collections.max(araes);
                RotatedRect minAreaRect = minAreaRect(countours.get(araes.indexOf(d)));
                float angle = minAreaRect.angle();
                if (angle < -45) {
                    angle = -(90 + angle);
                } else {
                    angle = -angle;
                Mat rot = getRotationMatrix2D(, angle, 1);
                Mat dst = new Mat(img.size(), img.type());
                warpAffine(img, dst, rot, dst.size(), WARP_INVERSE_MAP | INTER_LINEAR, BORDER_CONSTANT, new Scalar(0, 0, 0, 0));
                return dst;

    After warping and deskewing.

  11. Apply canny edge detector.
  12. Mat canimg = new Mat(procimg.size());
    Canny(procimg, canimg, 30, 90);

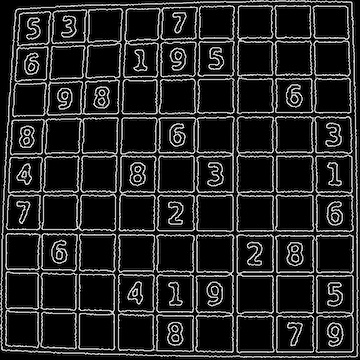

    After applying canny edge detector.

  13. Apply hough line transform.
  14. In this step, we apply hough line transform to the output image of the canny edge detector step, it returns an array (lines -in code-) of "rho" which is the perpendicular distance from origin to the line, and "theta" which is the angle formed by this perpendicular line and horizontal axis measured in counter-clockwise.

    Mat lines = new Mat();//vector stores the parameters (rho,theta) of the detected lines
    HoughLines(canimg, lines, 1, CV_PI / 180, 100);

    After applying hough line tranform.

  15. Cluster detected lines.
  16. In this step, we cluster output lines from the hough line transform using K-means into 10 vertical lines and 10 horizontal lines to remove redundant lines. The inputs to K-means are pairs of rhos and thetas of detected lines.

    FloatRawIndexer srcIndexer = lines.createIndexer();
    /*Horizontal lines and one for vertical lines*/
    List hpoints = new ArrayList<>();
    List vpoints = new ArrayList<>();
    for (int i = 0; i < srcIndexer.rows(); i++) {
        float[] data = new float[2]; //data[0] is rho and data[1] is theta
        srcIndexer.get(0, i, data);
        double d[] = {data[0], data[1]};
        if (Math.sin(data[1]) > 0.8) {//horizontal lines have a sin value equals 1, I just considered >.8 is horizontal line.
            hpoints.add(new org.deeplearning4j.clustering.cluster.Point("hrho" + Math.sin(data[1]), "hrho", d));
        } else if (Math.cos(data[1]) > 0.8) {//vertical lines have a cos value equals 1,
            vpoints.add(new org.deeplearning4j.clustering.cluster.Point("vrho" + Math.cos(data[1]), "vrho", d));
    /*Cluster vertical and horizontal lines into 10 lines for each using k-means with 10 iterations*/
    KMeansClustering kmeans = KMeansClustering.setup(10, 10, "euclidean");"Lines Number " + vpoints.size() + " " + hpoints.size());
    if (vpoints.size() >= 10 && hpoints.size() >= 10) {
        ClusterSet hcs = kmeans.applyTo(hpoints);
        List hlines = hcs.getClusters();
        Collections.sort(hlines, new LinesComparator());
        ClusterSet vcs = kmeans.applyTo(vpoints);
        List vlines = vcs.getClusters();
        Collections.sort(vlines, new LinesComparator());

    After applying K-means clustering algorithm.

  17. Validate detected lines.
  18. In this step, we check that the distance between any two consecutive lines is 40 pixel as sometimes you may get crossed lines.

    private static boolean checkLines(List vlines, List hlines) {
        final int diff = 40;//this may vary if you change the image width and hieght in method warpPrespectivePuzzle (600)
        if (!(vlines.size() == 10 && hlines.size() == 10)) {
            return false;
        for (int i = 0; i < hlines.size() - 1; i++) {
            Cluster get = hlines.get(i);
            double r1 = get.getCenter().getArray().getDouble(0);
            Cluster get1 = hlines.get(i + 1);
            double r2 = get1.getCenter().getArray().getDouble(0);
            if (Math.abs(r1 - r2) < diff) {
                return false;
        for (int i = 0; i < vlines.size() - 1; i++) {
            Cluster get = vlines.get(i);
            double r1 = get.getCenter().getArray().getDouble(0);
            Cluster get1 = vlines.get(i + 1);
            double r2 = get1.getCenter().getArray().getDouble(0);
            if (Math.abs(r1 - r2) < diff) {
                return false;
        return true;

  19. Find the intersection points between lines.
  20. In this step, we get the intersection points between vertical and horizontal line, from these points we form the cells of the grid .

    private static List getPoint(List vlines, List hlines) {
        List points = new ArrayList();
        for (int i = 0; i < hlines.size(); i++) {
            Cluster get = hlines.get(i);
            double r1 = get.getCenter().getArray().getDouble(0);
            double t1 = get.getCenter().getArray().getDouble(1);
            for (int j = 0; j < vlines.size(); j++) {
                Cluster get1 = vlines.get(j);
                double r2 = get1.getCenter().getArray().getDouble(0);
                double t2 = get1.getCenter().getArray().getDouble(1);
                Point o = parametricIntersect(r1, t1, r2, t2);
                if (o.y() != -1 & o.x() != -1) {
        for (int i = 0; i < points.size() - 1; i++) {
            Point get = points.get(i);
            Point get1 = points.get(i + 1);
            if (getDistance(get, get1) < 20) {
        //System.out.println("Points Size" + points.size());
        return points;
    /*get intersection points between two lines given their rhoes and thetas*/
    private static Point parametricIntersect(Double r1, Double t1, Double r2, Double t2) {
        double ct1 = Math.cos(t1);     //matrix element a
        double st1 = Math.sin(t1);     //b
        double ct2 = Math.cos(t2);     //c
        double st2 = Math.sin(t2);     //d
        double d = ct1 * st2 - st1 * ct2;//determinative (rearranged matrix for inverse)
        if (d != 0.0f) {
            int x = (int) ((st2 * r1 - st1 * r2) / d);
            int y = (int) ((-ct2 * r1 + ct1 * r2) / d);
            return new Point(x, y);
        } else { //lines are parallel and will NEVER intersect!
            return new Point(-1, -1);
    static double getDistance(Point p1, Point p2) {
        return Math.sqrt(Math.pow((p1.x() - p2.x()), 2) + Math.pow((p1.y() - p2.y()), 2));

    Extracted Cell.

  21. Extract digits.
  22. in this step, we extract the largest blob -after applying some conditions as aspect ratio, width, and height - from each extracted cells from the previous step assuming that it is the digit.

    private static Mat detectDigit(Mat img) {
        Mat res = new Mat();
        MatVector countours = new MatVector();
        List rects = new ArrayList<>();
        List araes = new ArrayList<>();
        bitwise_not(img, img);
        findContours(img, countours, opencv_imgproc.CV_RETR_TREE, CV_CHAIN_APPROX_SIMPLE, new Point(0, 0));
        for (int i = 0; i < countours.size(); i++) {
            Mat c = countours.get(i);
            Rect boundbox = boundingRect(c);
            if (boundbox.height() > 20 && boundbox.height() < 50 && boundbox.width() > 15 && boundbox.width() < 40) {
                double aspectRatio = boundbox.height() / boundbox.width();
                //System.out.println("Aspect ratio " + aspectRatio);
                if (aspectRatio >= 1 && aspectRatio < 3) {
                    double area = contourArea(c);
        if (!araes.isEmpty()) {
            bitwise_not(img, img);
            Double d = Collections.max(araes);
            res = img.apply(rects.get(araes.indexOf(d)));
            copyMakeBorder(res, res, 10, 10, 10, 10, BORDER_CONSTANT, new Scalar(255, 255, 255, 255));
            resize(res, res, new Size(28, 28));
            return res;
        } else {
            return img;//org.bytedeco.javacpp.helper.AbstractMat.EMPTY

    Extracted digit.

  23. Recognize digits.
  24. In this step, each digit is recognized by the pre-trained model.

     /*Recognise digit given its image*/
    private static int recogniseDigit(Mat digit) {
        int idx = 0;
        try {
            NativeImageLoader loader = new NativeImageLoader(28, 28, 1);
            bitwise_not(digit, digit);//to make the digit white and the background black
            INDArray dig = loader.asMatrix(digit);
            INDArray flaten = dig.reshape(new int[]{1, 784});
            flaten = flaten.div(255);
            INDArray output = NETWORK.output(flaten);
            idx = Nd4j.getExecutioner().execAndReturn(new IAMax(output)).getFinalResult();
            //imwrite("di/" + i + ".jpg", digit);
        } catch (IOException ex) {
        return DIGITS[idx];

  25. Solve sudoku puzzle.
  26. in this step, we form the sudoku matrix from the recognized digits, for the empty cells we just put zero, after that, we send it to solving algorithm in the class I depended on a code from here and here.

  27. Print the result.

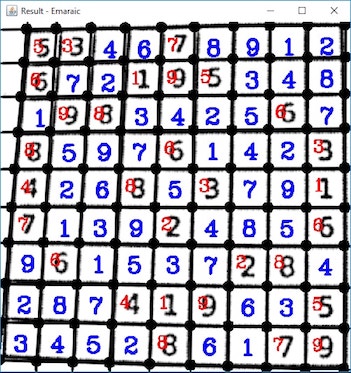

  28. In this step, we print the result to the image, the blue digits are the solution, and the red digits are the recognized digits of the sudoku puzzle.

     private static void printResult(Mat img, INDArray result, INDArray puzzle, List rects) {
        for (int i = 0; i < rects.size(); i++) {
            Rect rect = rects.get(i);
            int x = rect.x();
            int y = rect.y();
            int d = (int) result.getDouble(i / 9, i % 9);
            int d1 = (int) puzzle.getDouble(i / 9, i % 9);
            if (d != d1) {//Print Solution
                putText(img, d + "", new Point(x + 20, y + 50),
                        FONT_HERSHEY_COMPLEX, 1.3, new Scalar(255, 0, 0, 0), 3, 2, false);
            } else {//Print Recognised Puzzle
                putText(img, d + "", new Point(x + 10, y + 40),
                        FONT_HERSHEY_COMPLEX, 1, new Scalar(0, 0, 255, 0), 2, 2, false);

    Result Image.

Real-time Sudoku Solver


  • 'Realtime Webcam Sudoku Solver - CodeProject', Available here.
  • 'An Optical Sudoku Solver', Available here.

Subscribe to Our Mailing List



Blog Tags

Follow me

Facebook Page
